Bottom Loading Pneumatic Landfill Pumps

The bottom loader is the standard pump type in the VP Series. It fills from the bottom and discharges through the outlet at the top. Its domed strainer arrangement allows the pump to easily bypass down well ledges and obstructions during installation.

The materials of construction have been selected for the harsh environment in which they are working, such as aggressive media, high-temperature and suspended solids.

Bottom Loading Pneumatic Environmental Pumps

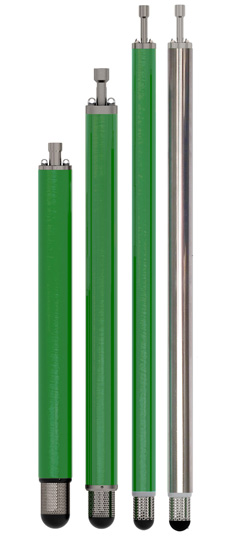

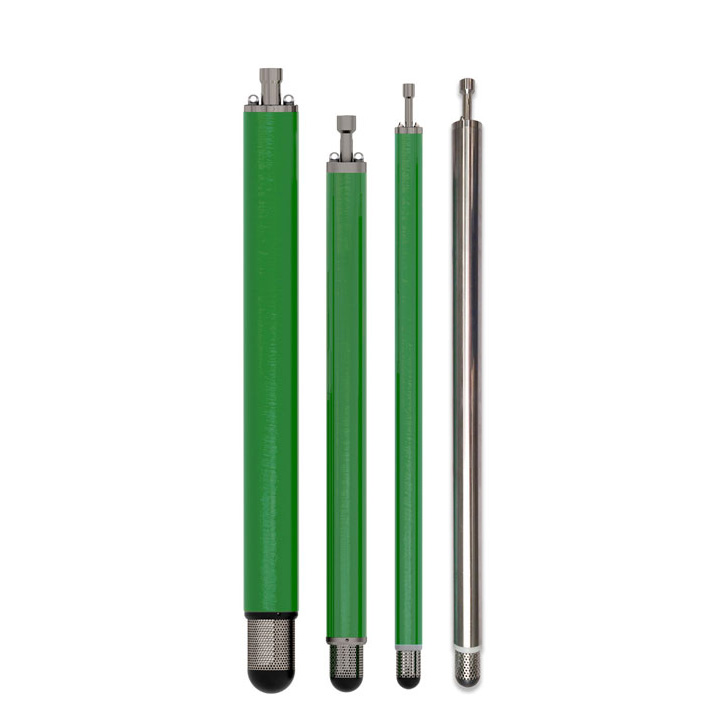

4", 3", and 2" Bottom Loading Pumps

Specification	VP4-BL	VP3-BL	VP2-BL
Liquid Inlet Position	Bottom	Bottom	Bottom
Max Flow Rate: gpm\min	>12.7	>5.3	>2.0
Volume\Cycle: Gallons	0.3	0.15	0.08
Pump Length : Inches	40.6	44.1	37.2
Weight: lbs.	13.2	9.4	3.3
Pump Diameter : in	3.5	2.8	1.7
Pump Trigger Point:in	26.4	29.3	25.5
Min Internal Well dia:in	3.9	3.1	2.4
Max Working Depth: feet	426	426	426
Max Operating Temp:°F	212	212	212
pH Operating Range	1-12	1-12	1-12
