VP Series Pneumatic Pumps

The VP range is a cost effective, ATEX certified, reliable, automatic and long lasting solution to leachate, condensate and contaminated water control problems. VP pumps are fully automatic, self-regulating and require no external form of control.

The VP Series includes pumps to suit most requirements: 4 Inch, 3 Inch, and 2 Inch models, in both top or bottom loading designs, and low draw down models for those situations where you are trying to achieve as low a depth as possible.


VP Pump Advantages

Outer casing is more resilient to harsh environments than comparable pumps on the market.

Unlike similar pumps, the rocker arm design does not allow for air infiltration, which can reduce pump efficiency and cause the pump to stall or airlock.

Adjustable, non-contact rocker magnets are precisely factory-set for optimum operation. With no exposure to harsh fluids, they aren’t subject to corrosion, lasting the entire life of the pump.

The VP4's float material is more chemical resistant and withstands water penetration, retaining its density thus retaining its performance.

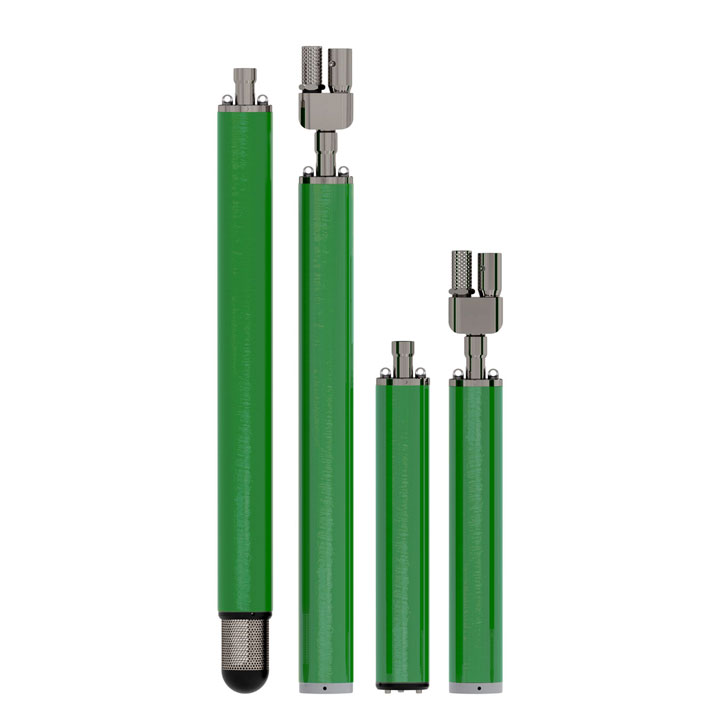

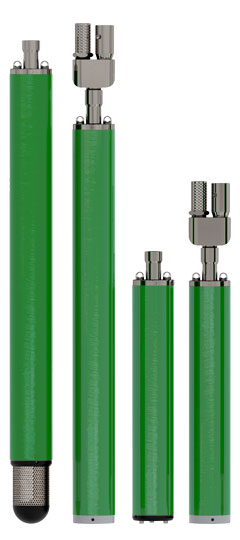

4 Inch Pneumatic Environmental Pumps

4 Inch Pneumatic Pumps

4 Inch ModelsVP4-BLVP4-TLVP4-BL LDDVP4-TL LDD
Liquid Inlet PositionBottomTopBottomTop
Max Flow Rate: gpm\min>12.7>9.2>5.3>5.3
Volume\Cycle: Gallons0.30.30.150.1
Pump Length : Inches40.643.321.729.1
Weight: lbs.13.217.69.412.1
Pump Diameter : in3.53.53.53.5
Pump Trigger Point:in26.424.414.213
Min Internal Well dia:in3.93.93.93.9
Max Working Depth: feet426426426426
Max Operating Temp:°F212212212212
pH Operating Range1-121-121-121-12

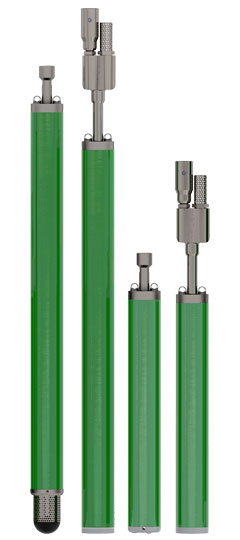

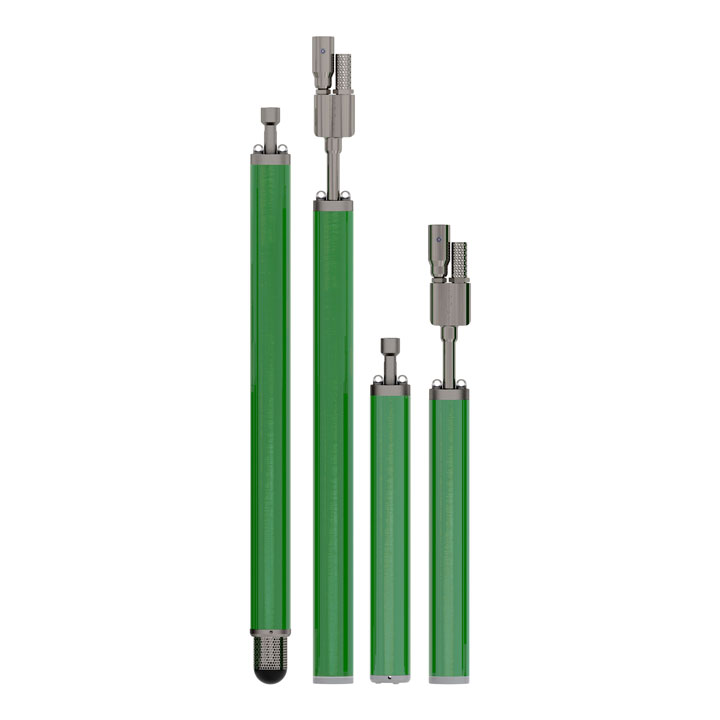

3 Inch Pneumatic Environmental Pumps

3 Inch Pneumatic Pumps

3 Inch ModelsVP3-BLVP3-TLVP3-BL LDD
Liquid Inlet PositionBottomTopBottom
Max Flow Rate: gpm\min>5.3>4.4>3.7
Volume\Cycle: Gallons0.150.20.1
Pump Length : Inches44.146.926.2
Weight: lbs.9.415.87.0
Pump Diameter : in2.82.82.8
Pump Trigger Point:in29.324.814.2
Min Internal Well dia:in3.13.13.1
Max Working Depth: feet426426426
Max Operating Temp:°F212212212
pH Operating Range1-121-121-12

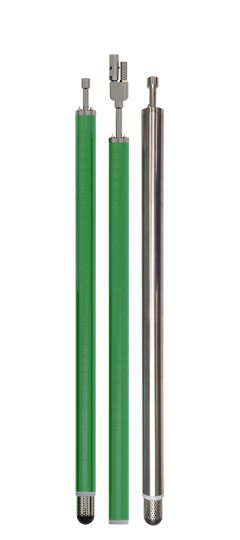

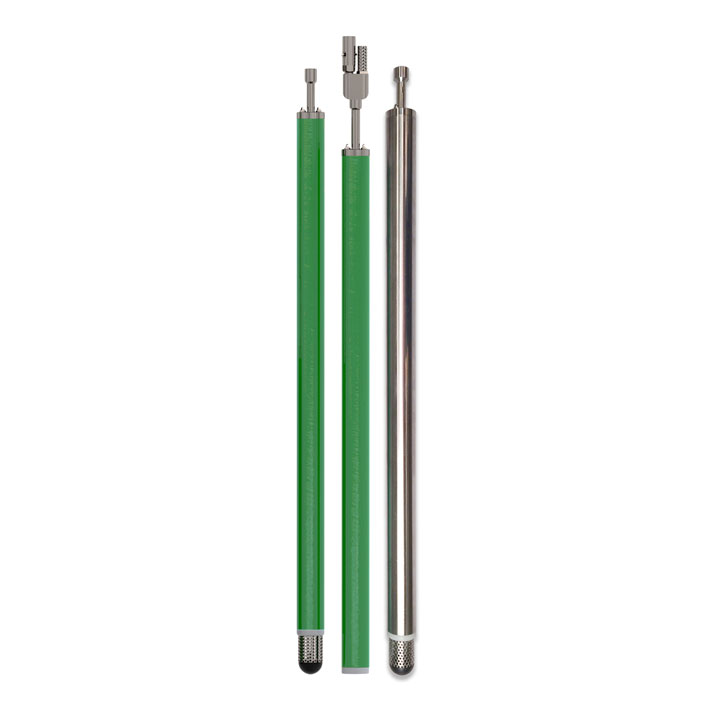

2 Inch Pneumatic Environmental Pumps

2 Inch Pneumatic Pumps

2 Inch ModelsVP2-BLVP2-TLVP2-BL SS
Liquid Inlet PositionBottomTopBottom
Max Flow Rate: gpm\min>2.0>1.7>2.0
Volume\Cycle: Gallons0.080.070.08
Pump Length : Inches37.239.137.2
Weight: lbs.3.34.46.9
Pump Diameter : in1.71.71.7
Pump Trigger Point:in25.523.425.5
Min Internal Well dia:in2.42.42.4
Max Working Depth: feet426426426
Max Operating Temp:°F212212212
pH Operating Range1-121-121-12
